    Home > 10. Airline Filters/Pumps > Ambient Air Pumps > Bullard Ambient Air Pump > ALLEGRO Model 9820-LP Low Pressure Airline Cooling System

    ALLEGRO Model 9820-LP Low Pressure Airline Cooling System

    << Previous in Bullard Ambient Air Pump Next in Bullard Ambient Air Pump >>

    Price: $710.00
    ALLEGRO Model 9820-LP Low Pressure Airline Cooling System
    Item Number: 9820-LP
    Manufacturer: Allegro
    Manufacturer Part No: 9820-LP
    Free Standard Ground Shipping To Lower 48 States
    Email this page to a friend
    free shipping

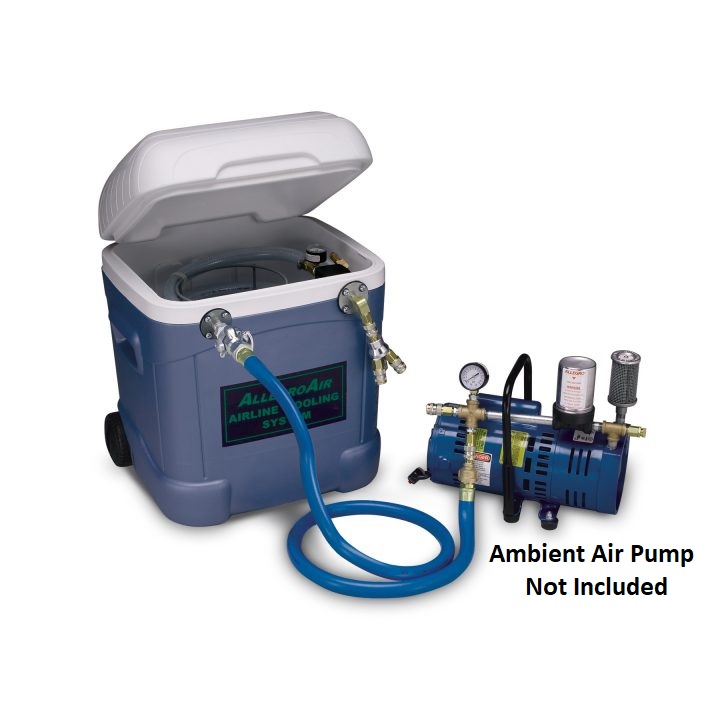

    ALLEGRO Model 9820-LP Low Pressure Airline Cooling System Is A Perfect, Low Cost & Portable Means Of Cooling Breathing Air While Keeping Workers Comfortable & Productive For Hours. The System Is Capable Of Reducing The Air Temperature From 180° F To As Low As 50° F. The Cooling System Is Connected To The Ambient Air Pump Through A 5′ Long Inlet Supply Airline Using A Heavy Duty “Chicago Style” Coupler. Air Flowing Through The FDA Grade PVC Temperature Cooling Coil Inside The 70 Quart Cooler Reduces The Air Temperature By Having Ice Poured Onto & Around The Coil. Coils Are Separated To Allow Ice To Surround Hose. The Outlet Air Is Filtered At The End Of The Coil Line By A 5 Micron Particulate Air Filter, Which Removes Condensation That May Build Up In The Hose. An Adjustable Relief Valve Allows The User To Adjust The Air Flow. Single Outlet Coupler Can Adapt To 3-Worker Manifold & Can Be Used With Up To 3-Worker Ambient Air Pump. Transportation Is Made Easy With Durable Wheels & A Locking Telescoping Pull Handle.

    The ALLEGRO Model 9820-LP Low Pressure Airline Cooling System Offers Greater User Comfort & Increased Worker Productivity, The AllegroAir Airline Cooling System Is A Low Cost & Portable Means Of Cooling Breathing Air Produced By Ambient Air Pumps. It Is Capable Of Reducing The Air Temperature From 180ºF (82.22°C) To As Low As 50ºF (10°C).

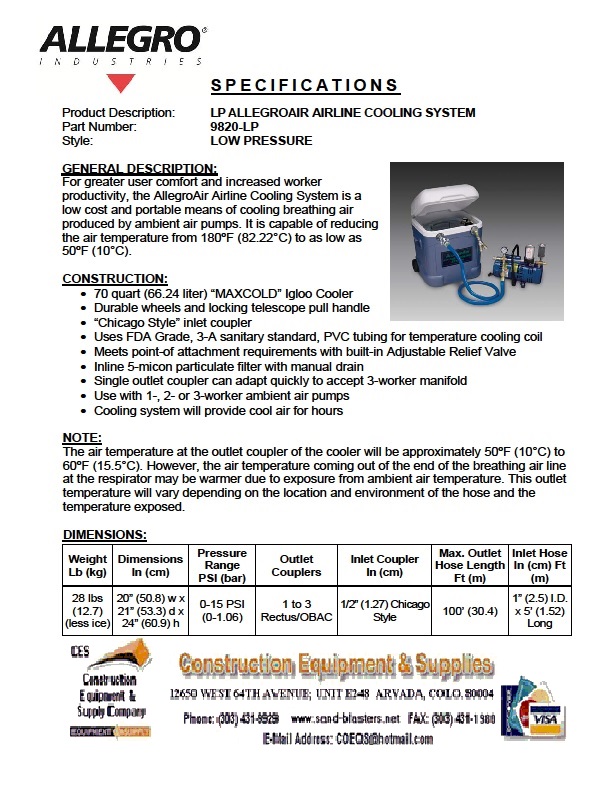

    ALLEGRO Model 9820-LP Low Pressure Airline Cooling System Features & Specifications:

      • 70 Quart (66.24 Liter) “MAXCOLD” Igloo Coole
      • Durable Wheels &  Locking Telescope Pull Handle
      • “Chicago Style” Inlet Coupler
      • Uses FDA Grade, 3-A Sanitary Standard, PVC Tubing For Temperature Cooling Coil
      • Meets Point-Of Attachment Requirements With Built-In Adjustable Relief Valve
      • Inline 5-Micon Particulate Filter With Manual Drain
      • Single Outlet Coupler Can Adapt Quickly To Accept 3-Worker Manifol
      • Use With 1-, 2- Or 3-Worker Ambient Air Pum
      • Cooling System Will Provide Cool Air For Hour
      • Dimensions: 20” Width x 21” Depth x 24” Height
      • Weight: 28 Lbs. (Without Ice)

        NOTE: Pump Sold Separately

                                                                                   Free Standard Ground Shipping To Lower 48 States

    NOTE:

    The air temperature at the outlet coupler of the cooler will be approximately 50ºF (10°C) to 60ºF (15.5°C). However, the air temperature coming out of the end of the breathing air line at the respirator may be warmer due to exposure from ambient air temperature. This outlet temperature will vary depending on the location and environment of the hose and the temperature exposed.



    Any damages or shortages MUST be noted on the carrier receipt at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading or delivery receipt for your records:


    Related Products

    Bullard Model EDP10 Ambient Air Pump
    Price: $1,695.00
    Bullard Model EDP10 Ambient Air Pump
    BULLARD MODEL EDP10 ELECTRIC DRIVEN FREE AIR PUMP FOR 1-2 OPERATORS
    RPB Model 06-100 3/4-HP Electric Powered Ambient Air Pump
    Price: $1,895.00
    RPB Model 06-100 3/4-HP Electric Powered Ambient Air Pump
    RPB Model 06-100 3/4 HP Electric Driven Free-Air Pump For 1-2 Operators
    CLEMCO Model 25908 CALIPSO Ambient Air Pump
    Price: $2,175.00
    CLEMCO Model 25908 CALIPSO Ambient Air Pump
    CLEMCO Model 25908 CALIPSO Ambient Air Pump
    Bullard Model EDP-16TE 2-3 Person Electric Driven Ambient Air Pump
    Price: $3,090.00
    Bullard Model EDP-16TE 2-3 Person Electric Driven Ambient Air Pump
    >Bullard Model EDP-16TE Electric Driven Free-Air Pump, 2-3 Person

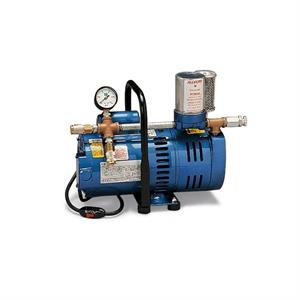

    ALLEGRO 9821 Model A-750 3/4 HP Electric Powered Ambient Air Pump
