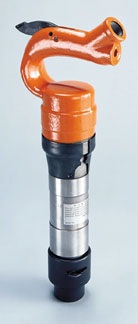

American Pneumatic Model 652 2" Stroke Pistol Grip Chipping Hammer With .680 Round Bushing & Std. Retainer

<< Previous in American Pneumatic Tool Chipping Hammers Next in American Pneumatic Tool Chipping Hammers >>

Price: $525.00
Item Number: 652-680R-04
Manufacturer Part No: 5298-04
The American Pneumatic Model 650 Series Chipping Hammers Are Used For Scaling, Chiseling, Removing Concrete Build-Up From The Side Of Cement Mixers, Light Concrete Demolition And Cement Finishing, Form Stripping, Etc.

All American Pneumatic Model 650 Series Chipping Hammers Feature:

  • Flapper Valve Design Allows Dirt To Pass Without Stopping The Tool
  • Deep Case-Hardened Alloy Steel Cylinders
  • Pistol Grip Drop-Forged Handles
  • .680 Round Nose Bushing Allows Steel To Turn Freely
  • Adjustable Exhaust Deflector
  • Price Includes Oval Retainer (7022), Locking Spring (1941), And 6' Whip Hose Assembly With Swivel Assembly (9266)
  • Optional Quick Change Retainer Systems Available (#5550 With Locking Spring And #18290 Latch-Type)
Part No. 5298
Chuck Bushing .680 Round
Bore 1-1/8
Stroke 2
B.P.M. 2100
CFM @ 90 PSI
inlet pressure
32-34
Weight
Lbs.
12
Length
Inches
13-1/4




 MODEL
 5298
 5299
 5300
5301
5302
 5303
NOSE BUSHING  .680 Round .580 Hex  .680 Round  .580 Hex  .680 Round  .580 Hex
BORE DIAMETER (in) 1-1/8  1-1/8  1-1/8  1-1/8  1/1/8  1/1/8
STROKE (in.)
BPM 2100  2100  1650  1650  1375  1375
CFM @ 90psi 32-34  32-34  33-35  33-35  34-36  34-36
WEIGHT (lbs) 12  12  14  14  16  16
LENGTH (in.) 19-3/4  19-3/4  19-3/4  19-3/4  19-3/4  19-3/4
AIR INLET SIZE  1/2 FEMALE NPT   1/2 FEMALE NPT   1/2 FEMALE NPT   1/2 FEMALE NPT   1/2 FEMALE NPT   1/2 FEMALE NPT

Select Here For American Pneumatic Model 650 Series Chipping Hammer Parts Breakdown:
