    Home > 25. Air Compressors > Portable Diesel Powered Air Compressors > Chicago Pneumatic Model CPS-185 KD T4F CFM Portable Diesel Powered Air Compressor

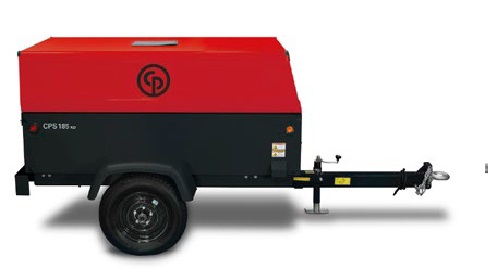

    Chicago Pneumatic Model CPS-185 KD T4F CFM Portable Diesel Powered Air Compressor

    << Previous in Portable Diesel Powered Air Compressors Next in Portable Diesel Powered Air Compressors >>

    Price: $21,600.00
    Chicago Pneumatic Model CPS 185KD CFM Portable Diesel Air Compressor
    Item Number: 8972-4261-58
    Manufacturer: CP
    Manufacturer Part No: CPS185KDT4F
    Email this page to a friend
    The Chicago Pneumatic CPS185-KD T4F Portable Compressors Provide You With Compressed Air Of 185 CFM At A Working Pressure Of 102 PSI (7 Bar).  Powered By A Kubota 49 Horsepower 4-Cylinder Diesel Engine This Range Of Portable Compressors Is Typically Used To Drive Various Types Of Pneumatic Tools Including Rock Drills and Sandblast Equipment. The CPS 185 KD T4F Portable Air Compressor from Chicago Pneumatic offers many features other manufacturers charge extra.  The corrosion resistant  galvanneal steel canopy will ensure many years of service.  A compact, lightweight design provide greater maneuverability and added safety while towing.  The CPS 185 KD features a highly efficient, direct-drive air end that provides 185 CFM of compressed air while using only a 49 HP engine.  The control panel and discharge valves are conveniently located at the rear of the compressor.

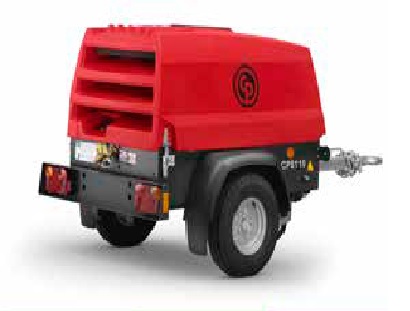

    The Chicago Pneumatic MiniSkid Series Of Compressors Are Designed To Be Mounted On Work Trucks And Utility Trailers.  Same As Picture Above Less Trailer, Axle, Tow Bar, Fenders, Wheels And Third Leg.

    The Chicago Pneumatic CPS Is A Time Proven Design Of Reliability, Easy Maintenance, And Flexibility To Meet All Construction Projects.  With Noise Reducing Enclosures And Straightforward Control Panels CP Air Compressors Are Quiet And Easy To Use.   The Conveniently Rear End Mounted Control Panel Offers Protective Shutdowns For High Engine Temperature, Low Oil Pressure, And High Compressor Temperature.  With Its Wide Opening One Piece Canopy Supported By Two Gas Struts Allows Excellent Service Access.


    CHICAGO PNEUMATIC MODEL CPS-185-KD T4F 185 CFM DIESEL PORTABLE AIR COMPRESSOR:

    * Kubota D1803T Turbo Tier-4  49-Horsepower 3-Cylinder Diesel Engine
    * Water Cooling System
    * Galvanneal Canopy Corrosin Resistant
    * 76dB @ 23 Feet
    * Filter Maintenance Indicator
    * Two 3/4" Discharge Valves
    * CP Patented Rotary Screw Compressor Type Pump
    * 185 Cubic Feet Per Minute Rating
    * Pressure Per Square Inch @ 100 PSI
    * Fuel Capacity: 20 Gallons
    * Fuel Consumption: 2.3 Gallons Per Hour @ 100% Load

    * Adjustable Height Pintle Hitch
    * 3" Lunette
    * Safety Chains
    * Screw Jack Leveling
    * Electric Fuel Gauge
    * Light Package
    *  4-Way Trailer Plug
    * Thermostatic By-Pass Valve
    * Mineral Compressor Oil
    * 1100 CCA Battery
    * Recessed Towing Lights
    * Rear Bumper
    * Torsion Bar Suspension
    * Heavy-Duty Torsion Axle Rated @ 2500 Lbs.
    * 15" Rims & Tires
    * Wide Opening One Piece Canopy For Easy Access
    * Protective Shutdown System
    * Easy Startup Glow Plug
    * Single Point Lifting Structure
    * Control Panel Mounted At Rear Of The Compressor
     * Length: 131"
    * Width: 55.25"
    * Height: 53"
    * Wet Weight: 2400 Lbs.


    **Truck Freight Shipment Requirements

    Delivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order. Unloading and moving product(s) is your responsibility. Truck freight companies do NOT require their drivers to unload shipments. Inspect all packages upon delivery. Any damages or shortages MUST be noted on the bill of lading at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.

    Due To Weight Restrictions This Unit Must Ship By Common Carrier. This Is An Additional Charge To Sales Price Above. Please Call For Freight Quote Or Supply Preferred Carrier & Account Number In "Messages" On Order Form.

    This item cannot be shipped by UPS. It will ship by common carrier directly from the factory. For a quote on shipping cost to your location, call (303) 431-9929) or email  coeqs@hotmail.com with the Zip Code to which you would like it shipped. Please specify if the delivery location is commercial or residential. Trucking companies charge more to deliver to residential locations. If other options such as “Liftgate” or “Call To Schedule Delivery” is required these may also be an additional charge.

     This Equipment's Posted Price Is Based On A Wire Transfer Payment, Includes A Freight Allowance & Customer Offloading At A Business Location

    Price Above Does Not Include Packaging For International Shipments.
    Exporting Requires Crating At An Additional Charge
    .

    Note: Compressed Air Should Never Be Supplied As Breathing Air Unless Air Is Properly Purified For Breathing. Chicago Pneumatic And Construction Equipment & Supply Do Not Assume Any Responsibility Of Liability Related To Purchasers/User's Breathing Systems.

    .
