Clem-Cool Air Conditioner

The Clemco Clem-Cool Air Conditioner (CCAC) Allows The Blast Operator To Control The Temperature And Volume Of Air To A Clemco High-Pressure Type CE Continuous Flow Supplied-Air Respirator Within A Preset Range And To Cool The Air By As Much As 50 Degrees F.

Requirements for Operation Are As Follows:
* 20 CFM At 90 To 100 PSI Of Grade D Quality Breathing-Air As Defined By The Compressed Gas Association Commodity Specification: G-7.1) (www.cganet.com)

Pressure Requirements Vary With Hose Length. (Hose Offered In 25 Foot Increments) Minimum Pressure To Produce Minimum Airflow To Respirator.
* 25 Feet To 75 Feet @  90 psi
* 100 Feet To 200 Feet @  95 psi

NOTES:
1. Maximum Air Pressure: 100 PSI
2. Maximum Hose Length: 200 Foot When Used With Respirator

Description of Operation
The Clem-Cool Air Conditioner Is Placed Between The Respirator Air Supply Line And The Helmet Breathing Tube. A Knurled Knob On The Valve Lets The Operator Adjust The Cooling Rate Of The Air Entering The Respirator.

The Clem-Cool Air Conditioner Cannot Be Closed Completely, So The Operator Always Has At Least The Minimum Air Volume Required For Breathing And For Maintaining Positive Pressure Inside The Helmet.

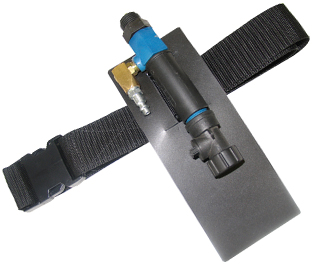

The CCAC Comes With A Belt That Adjusts To Fit Up To A 54-Inch Waist.  The Durable Buckle Can Be Fastened And Unfastened With Gloved Hands.

A Belt-Mounted Heat Shield Protects The Operator From Warm Exhaust Air (A Byproduct Of The Production Of Cool Air).

Advantages:

• Increases Productivity By Keeping Blast Operator Cool & Comfortable
• Durable Construction
• Lightweight NIOSH-Approved Comfort System

Certifications & Approvals:
The Clem-Cool Air Conditioner Is Approved By NIOSH For Use Only With Clemco Apollo HP High-Pressure Type CE Supplied-Air Respirators (Not For Use With Low-Pressure Respirators).

The Clem-Cool Air Conditioner Is One Component Of A NIOSH-Approved System; Use Of Counterfeit Parts Voids The NIOSH Approval.

To Maintain NIOSH Approval, Use Only Genuine Clemco Apollo Replacement Parts.
