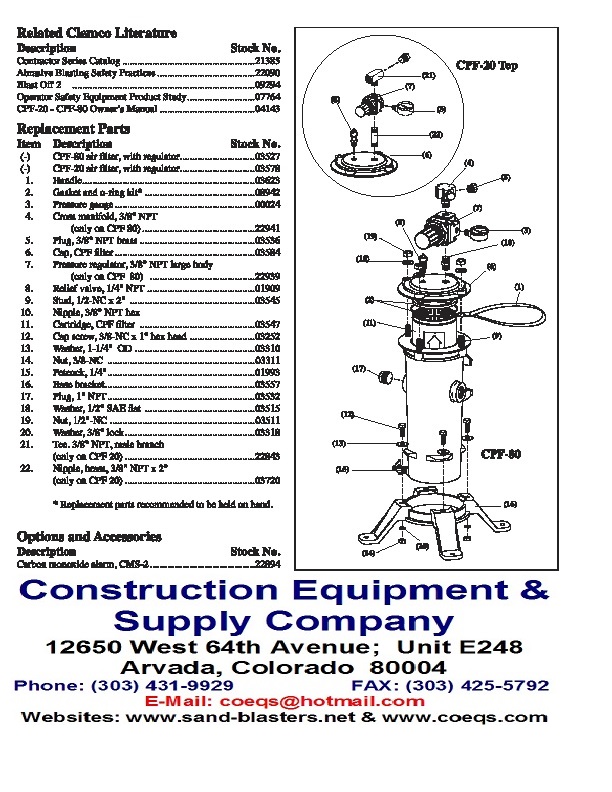

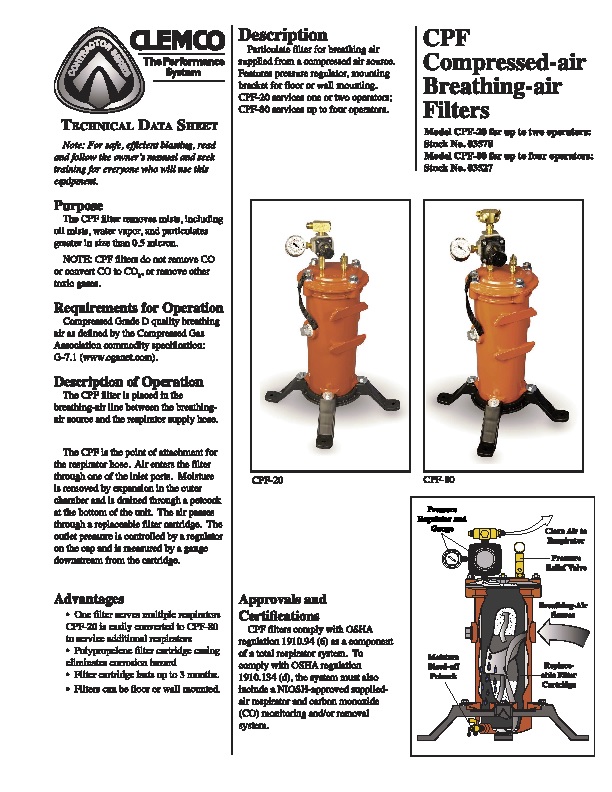

CLEMCO CPF20 & CPF80 Filter Literature & Parts Breakdown

    Construction Equipment & Supply Company
    12650 West 64th Avenue;  Unit E248
    Arvada, Colorado  80004
    Phone: (303) 431-9929                    FAX: (303) 425-5792
    E-Mail: coeqs@hotmail.com
    Website: www.sand-blasters.net





    Search
    Browse Categories
    • Line Card
    • 1. Abrasive Blasters
    • 2. Blast & Vac Systems
    • 3. Abrasive Cabinets
    • 4. Baking Soda Blasters
    • 5. Blast Hose/Couplings.
    • 6. Blast Lights
    • 7. Blast Media
    • 8. Blast Metering Valves
    • 9. Blast Nozzles
    • 10. Airline Filters/Pumps
      • Ambient Air Pumps
      • Breathing Air Filters
        • BULLARD AIRLINE FILTER
        • CLEMCO Airline Filter
      • CO Monitors
      • Filtration Panels
    • 11. Climate Control
    • 12. Communications
    • 13. Deadman /Handles
    • 14. Pipe Blasting
    • 15. Pipe Painting Equip.
    • 16. Protective Clothing
    • 17. Remote Systems
    • 18. Respirator Hoods
    • 19. Safety Equipment
    • 20. System Sizing Chart
    • -----------------------------------
    • 25. Air Compressors
    • 26. Air Line Anti-Freeze
    • 27. Air Powered Tools
    • 28. Air Powered Vacuums
    • 29. Big Air & Hydro Guns
    • 30. Compaction Equip.
    • 31. Core Drill
    • 32. Dewatering Pumps
    • 33. Diamond Blades
    • 34. Doweling Equipment
    • 35. Gasoline Breaker/Drill
    • 36. Generators
    • 36. Hydraulic Equipment
    • 37. Platform Hoists
    • 38. Rock Splitters
    • 39. Saws
    • 39. Syphon & Blow Guns
    • 40. Ventilation Blowers
    Links
    Account Login
    You will be prompted to enter your password on the next page

    Create an account
    Forgot Password?
    Shopping Cart
    Your cart is empty.
    Mailing Lists
    Home > 10. Airline Filters/Pumps > Breathing Air Filters > CLEMCO Airline Filter > CLEMCO Model CPF-20 Two Outlet Breathing Air Filter

    CLEMCO Model CPF-20 Two Outlet Breathing Air Filter

    << Previous in CLEMCO Airline Filter Next in CLEMCO Airline Filter >>

    Price: $268.00

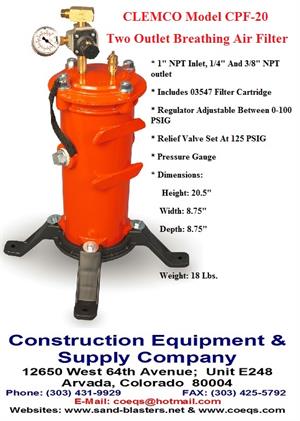

    CLEMCO Model CPF-20 Two Outlet Breathing Air Filter
    Item Number: 03578
    Manufacturer: Clemco
    Manufacturer Part No: CPF-20
    Email this page to a friend

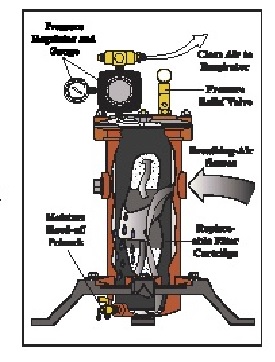

    CLEMCO MODEL CPF-20 2-OUTLET BREATHING AIR FILTER Breathing-Air Particulate Filter Provides Grade D Quality Breathing Air To Single Operator. Filter Cartridges Are Specifically Designed To Effectively Trap And Remove Oil Particulates, Odor And Organic Vapors Using A Multi-Layer Filtering System. The Compressor-Supplied Air Enters The Filter And Travels Through 7 Layers Of Filter Material Before Exiting Through The Outlet Port. Carded Cotton, Felt Material, Activated Charcoal And Activated Alumina Work In Sequence To Supply Cleaner Air To Workers Or Equipment

    The CLEMCO Model CPF-20 2-Outlet Airline Filter Comes Fully Equipped With Pressure Gauge, Relief Valve, Pressure Regulator And Hose Adaptor Fitting.

    • 1" NPT Inlet, 1/4" And 3/8" NPT outlet
    • Includes 03547 Filter Cartridge
    • Regulator Adjustable Between 0-100 PSIG
    • Relief Valve Set At 125 PSIG
    • Pressure Gauge
    • Engineered To Be Wall Or Floor Mounted
    • Easily Upgraded To A Multiple Operator Unit
    • Polypropelene Corrosion-Free Replacement Filter Cartridges
    • Dimensions: Height: 20.5" x Width: 8.75" x Depth: 8.75"
    • Weight: 18 Lbs.
    • Shipping Weight: 22 Lbs.


    Additional Information

    Please Select Here For Additional Information On The Clemco Model CPF-20 Airline Filter!

    Approvals & Certifications:

    CPF Filters Comply With OSHA Regulation 1910.94 (6) As A Component Of A Total Respirator System. To Fully Comply With OSHA Regulation 1910.134 (d), The System Must Also Include A NIOSH-Approved Suppliedair Respirator & Carbon Monoxide (CO) Monitoring And/Or Removal System.

    Any damages or shortages MUST be noted on the carrier receipt at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading or delivery receipt for your records.
