CLEMCO Model 24640 12V Electric Heavy-Duty Spin-Blast Internal Pipe Cleaning Tool: 18" To 120" ID Pipe

<< Previous in 14. Pipe Blasting

Next in 14. Pipe Blasting >>

Manufacturer: Clemco

Product Options

Size Below:

Quantity:

Email this page to a friend

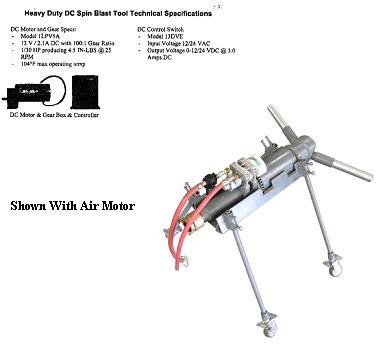

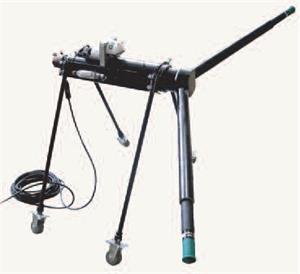

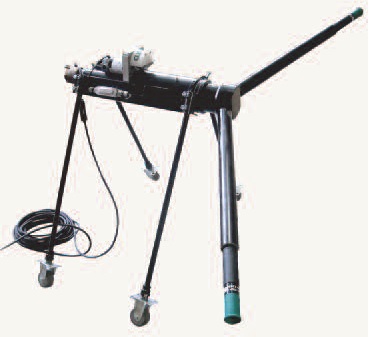

CLEMCO Model 24640 12 Volt Electric Powered Heavy-Duty Spin-Blast Internal Pipe Cleaning Tool Is Rugged, Heavy-Duty, and Extremely Low Maintenance: Nozzles Sold Separately

For Pipes 18" To 120" ID
Electric Motor Control Offers Exibility In Cleaning Rates For Varying Surface Conditions
Adjustable Centering Carriage For Consistent Blast Pattern
Use With Standard Blast Machine

Pipe Cleaning Just Got Easier With The Spin-Blast HD From Clemco. The Spin-Blast Electric Powered HD Is A Rugged, Portable, High-Production Tool For Blast Cleaning The Internal Surface Of Steel Pipe. Its Carriage Adjusts For Cleaning Pipe From 18 Inches To 120 Inches Inside Diameter.

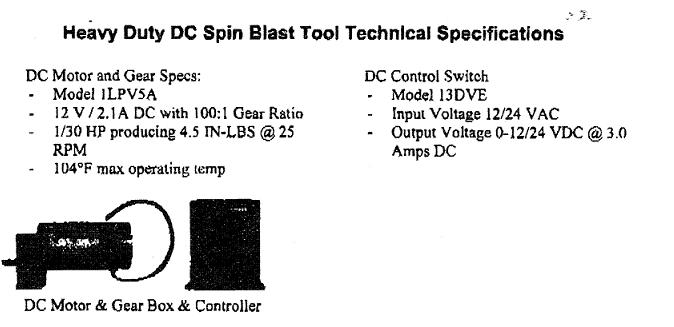

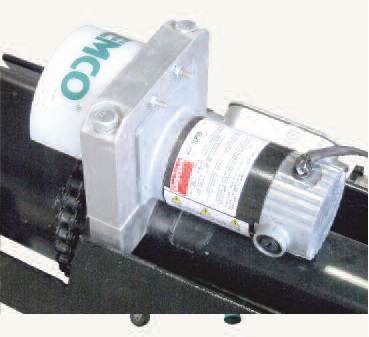

The Spin-Blast HD electric model is for 18-inch to 120-inch pipe diameters. The motor is controlled by a simple-to-operate control box with an on off switch and a knob to control the RPMs of the DC motor, which controls the blast head speed. By manually controlling the blast head speed, the operator can vary the dwell time for more efficient blast cleaning. The HD-E does not require AC electric power; and does not consume expensive compressed air beyond the needs of the nozzles. The motor is capable of producing 4.5 inch pounds at 25 RPM; and has 100:1 gear ratio providing the necessary torque for large, high production blast nozzles for large diameter pipe.

The Spin-Blast HD Is A 12V Electric Powered Tool That Is Used As An Accessory To A Standard Blast Machine. The Tool Can Be Used With Nozzles From 3/8" ID To 1/2" ID And Requires A Minimum Of 1-1/2” ID Blast Hose. [Larger Nozzles Can Be Used In Special Situation]. Nozzles Sold Separately.

Advantages:

        * Sturdy, Rugged Tool That Withstands The Harsh Blast Environment
        * Few Moving Parts To Replace
        * Independent Air Motor Control Of Blast Head Suits Varying Surface Conditions

Typical Applications:

Prepare New Pipe For Coating
Strip Coatings From Pipeline For Inspection And Repair
Remove Damaged Coatings, Rust, Or Corrosion
Spin-Blast HD-E (18” to 120” pipe ID) Electric-Motor Driven
Spin-Blast HD-E Tool (Less Nozzles) With Carriage.....24640
Spin-Blast HD-E Tool (Less Nozzles) W/O Carriage......24641
Nozzle Extensions (Set Of Two)
6” .......................................................................................25118
12”......................................................................................24647
24”......................................................................................24648
Spare Parts Kit .................................................................24649

For Your Own Health Silica Sand Is Not Recommended And For Legal Reasons Voids The Warranty, Though Sand Will Flow Easily Through This Machine. Breathing Dust From Silica Sand May Cause Silicosis, A Fatal Lung Disease. Breathing Dust During Blasting Operations May Also Cause Asbestosis And/Or Serious Other Diseases. A NIOSH Approved And Well-Maintained Air Supplied Abrasive Blasting Respirator Must Be Used By Anyone Blasting, Anyone Handling Or Using The Sand And Anyone In The Area Of The Dust. Harmful Dust Can Remain Suspended In The Air For Long Periods Of Time After Blasting Has Ceased, Causing Serious Injury Or Death
