EMPIRE 111023 Model 3642 PRC-6 ProFormer "All-In-One" Pressure Blast Cabinet

<< Previous in Empire Blast Cabinets

Next in Empire Blast Cabinets >>

Price: $29,995.00

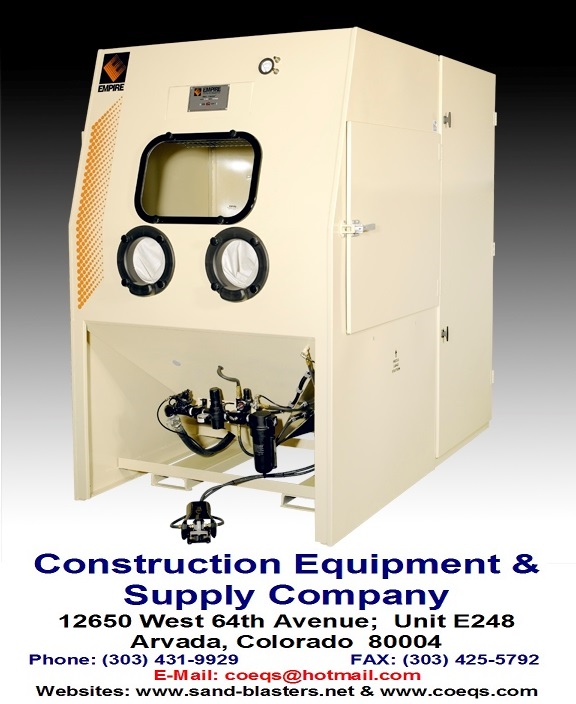

EMPIRE Model 3642 ProFormer "All-In-One" Pressure Blast Cabinet

Item Number: PF-3642 PRC-6

Manufacturer: Empire

Manufacturer Part No: 111023

Freight Quote Will Be Forwarded Upon Checkout

Quantity:

Email this page to a friend

The EMPIRE Model 3642 ProFormer "All-In-One" Pressure Blast Cabinet Puts It All Together In A Single Assembly That's Easy To Move & Simple To Hook Up. These Cabinets Require Only Two Connections, Air & Electrical, And Include Features Offered In Our High Production Pro-Finish® Line. Plus, They Come In Two Sizes: The 3642 With Interior Working Dimensions Of 36 Inches Deep By 42 Inches Wide By 48 Inches High & Its Bigger Brother, The 4652, With Working Space Of 46 Inches By 52 Inches By 48 Inches.

Both Include A Tunable Media Reclaimer, Capable Of Recycling A Variety Of Abrasives, & A Cartridge-Type Dust Collector, Monitored By A Minihelic Gauge, Contained In The Same Enclosure As The Cabinet, Along With All Electrical & Pneumatic Interconnections Between Components. Forklift Slots Are Also Provided, Making These Units Easy To Move Between Work Stations.

The Dust-Collector Filtration System Is Designed For Easy Maintenance. Filters Can Be Pulse-Cleaned With The Press Of A Button. When Filters Need Replacement, They Can Be Changed Quickly & Cleanly With A Twist Of Two Nuts. The Filters Slide Into The Cabinet Where Any Loose Dust Falls Into The Cabinet, Not Onto The Work Floor.

Designed For Production Blasting, These Versatile Cabinets Enable You To Perform Multiple Tasks. You Can Clean Or Peen & Perform Almost Any Finishing Job In Between By Simply Varying Air Pressure & Blast Media.

These Rugged Cabinets Can Be Specified With Either Suction- Or Pressure-Blast Systems & A Wide Range Of Standard Factory Options Listed Below.

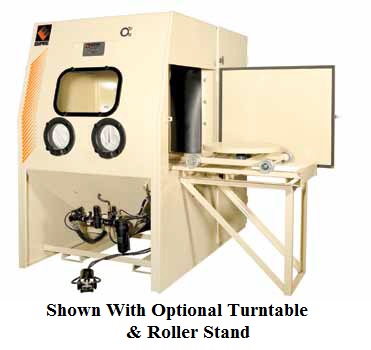

Rolling Turntables, Designed To Expedite Loading & Processing, Are Just One Of Many Standard Factory Options Available With ProFormer™ Cabinets

ProFormer™ Cabinets Are Equipped With Cartridge Dust Collectors To Facilitate A Quick Change Of Filtration Surfaces. These Two Cartridges Have A Filtration Area Of 103 Square Feet Each, Providing A Total Of 206 Square Feet, & Can Be Replaced In Minutes Through The Cabinet Door. As A Result, Loose Dust Falls Into The Cabinet Rather Than Onto The Work Floor.

The Standard Minihelic Gauge Shows Pressure Differential Across The Filters, Prompting The Operator To Activate The Pulse-Cleaning Mechanism. With The Photohelic Upgrade, Pulse Cleaning Is Initiated Automatically When The System Detects A Pre-set Pressure Differential.

Replenishing Media Is Essentially Fool-Proof With ProFormer Cabinets. They Are Specially Designed To Prevent Clogging When Abrasives Are Loaded Through The Cabinet Floor. Pressure (Middle) & Suction (Bottom) Configurations Appear On The Left.

Empire Abrasive Has The BEST WARRANTY IN THE INDUSTRY At Three-years Limited On Parts.

EMPIRE Model 3642 ProFormer "All-In-One" Pressure Blast Cabinet Features & Specifications:

Consolidate All Systems In One Enclosure
Move Easily Between Work Areas With Forklift Slots
Hook Up With Only Two Connections
Ergonomic Glove Rings With Operator Armrests
Rubber, Cloth-Lined Gloves
Two, 90-Watt Flood Lights
Dust-Off Gun
Safety-Switch Prevents Accidental Blasting When Door(s) Are Open
Movable Pneumatic Foot Treadle Control
14" x 22" Safety-Glass Window With Quick-Change Frame
Air-Rressure Regulator & Gauge
Media Regulator
Tunable Media Reclaimer Capable Of Recycling A Variety Of Abrasive Medias
Leveling Bolts
14-Gauge Construction On Cabinet Enclosure
3/16" Perforated Floor With 1,000- Pound Capacity
600 CFM Ventilation
1-1/2 Horsepower Blower Motor
ProFormer™ Systems Are Wired For A 230 Volt, 60 Hertz, Single-Phase (3 Wire) Electrical Source (Optional Motors Available)
Standard Minihelic Gauge Shows Pressure Differential Across The Filters
Kleensweep Directs Air Flow Across Window For Improved Visibility
Equipped With Cartridge Dust Collectors To Facilitate A Quick Change
Two Cartridge Filters Which Have A Filtration Area Of 103 Square Feet Each, Providing A Total Of 206 Square Feet
Overall Dimensions: 72" Depth x 44" Width x 82" Height
Inside Dimensions: 36" Depth x 42" Width x 48" Height
Door Sizes: 29" Depth x 32" Width (RH & LH)
Ceramic Nozzle Size: 3/16" (Tungsten Carbide or Boron Carbide Nozzles Available)
Pipe String: 1"
Pressure Vessel: 1.0 Cu. Ft.
Weight: 1720 Lbs.

AIR REQUIREMENTS (SCFM) FOR PRESSURE BLAST
40 PSI			60 PSI	80 PSI		100 PSI
1/8” Nozzle	10	14			17		20
3/16” Nozzle*	22 (6 HP)	30 (7.5 HP)			38 (9.5 HP)		45 (11 HP)
¼” Nozzle†	41	54			68		81

* Standard Nozzle Do Not Exceed 125 PSI

Features

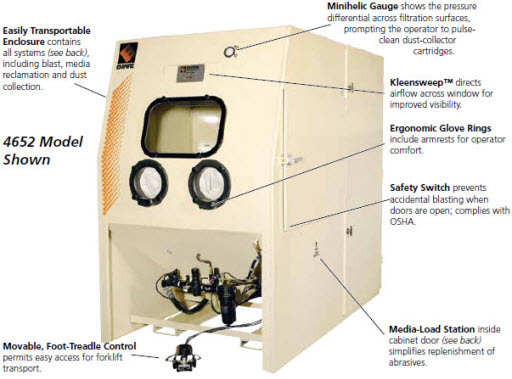

ProFormer-Blast-Cabinet-Features

Factory Options:

N/A

Three-Phase & Other Electrical Hookups
Manual Turntables
Fixed-Gun Holders
Rotating Door-Attached Baskets
Extended-Wear Components, Including Rubber Curtains, Window Protectors, Heavy-Duty Ducting, Wear-Resistant Nozzles & Reclaimer Linings
Automatic Sure-Flo® Media Regulator
MG-78 CR Exhaust Valve
Vibrating Reclaimer Screen
Magnetic Ferrous-Particle Extractor
Photohelic Gauge/Activator For Automatic Pulse Cleaning Of Dust-Collector Cartridges
Rubber Safety Mats

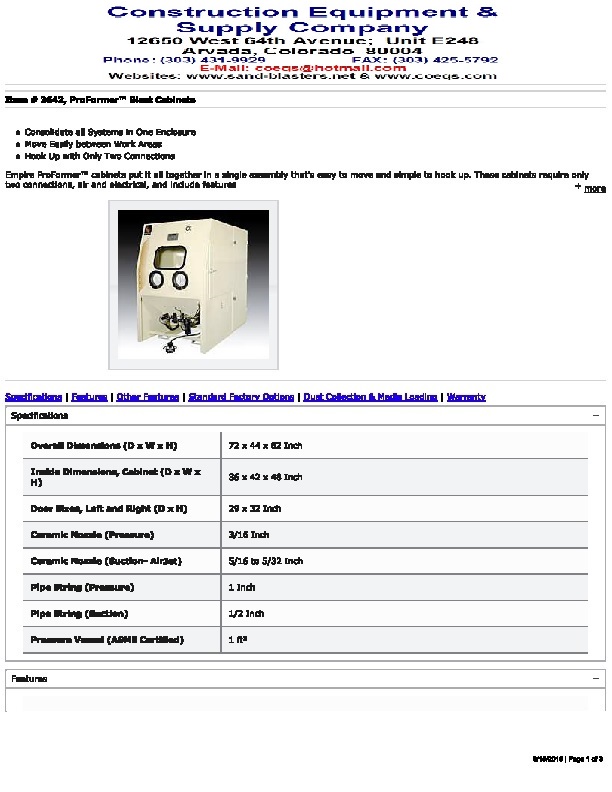

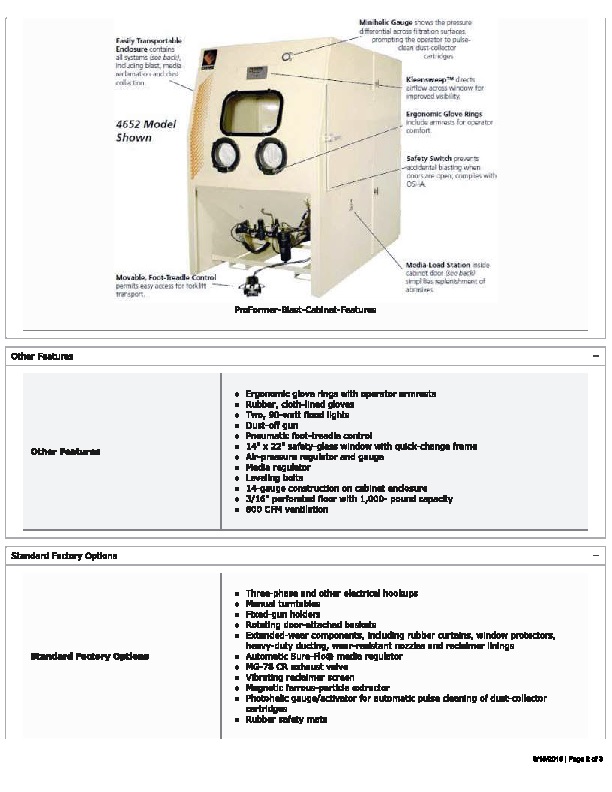

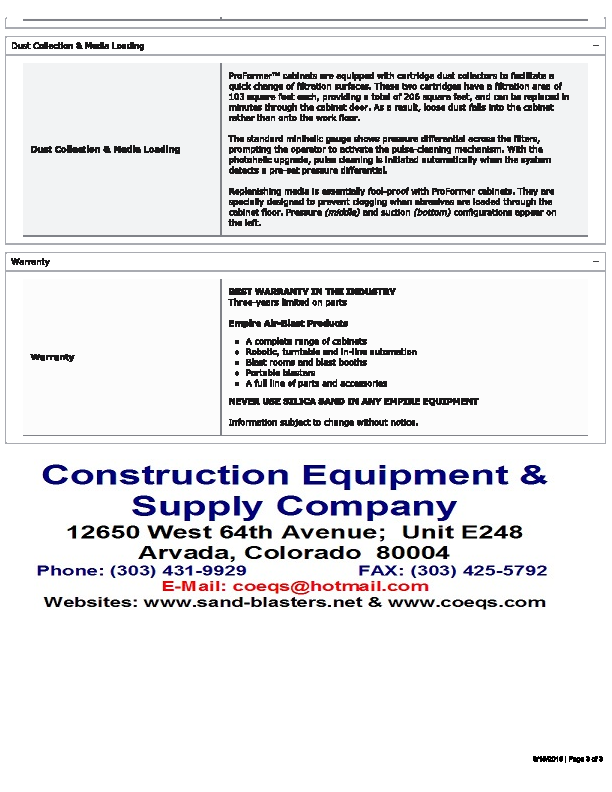

Select Here For Additional Information on the Empire ProFormer Series "All-In-One" Pressure Blast Cabinet:

Select Here For Parts Breakdown on The Empire ProFormer Series "All-In-One" Pressure/Suction Blast Cabinet:

**Truck Freight Shipment Requirements

Delivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order. Unloading and moving product(s) is your responsibility. Truck freight companies do NOT require their drivers to unload shipments. Inspect all packages upon delivery. Any damages or shortages MUST be noted on the bill of lading at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.

Due To Weight Restrictions This Unit Must Ship By Common Carrier. This Is An Additional Charge To Sales Price Above.
Please Call For Freight Quote Or Supply Preferred Carrier & Account Number In "Messages" On Order Form.

This item cannot be shipped by UPS. It will ship by common carrier directly from the factory in Pennsylvania. For a quote on shipping cost to your location, call (303) 431-9929) or email coeqs@hotmail.com with the Zip Code to which you would like it shipped. Please specify if the delivery location is commercial or residential. Trucking companies charge more to deliver to residential locations. If other options such as “Liftgate” or “Call To Schedule Delivery” is required these may also be an additional charge.

Price Above Does Not Include Packaging For Domestic & International Shipments Exporting Requires Crating At An Additional Charge

NEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENT
