NORTECH Model N101DC Complete Vacuum System With 10-Gallon Drum

<< Previous in Vacuum Units Complete

Next in Vacuum Units Complete >>

Price: $935.00

Nortech Model N101DC Vacuum System With 8-Gallon Drum

Item Number: N101DC

Manufacturer: Nortech

Manufacturer Part No: 690773031587

Free Standard Ground Shipping To Lower 48 States

Quantity:

Email this page to a friend

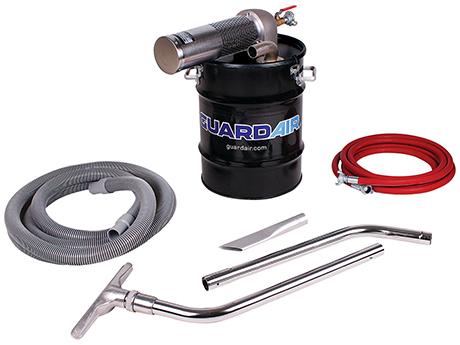

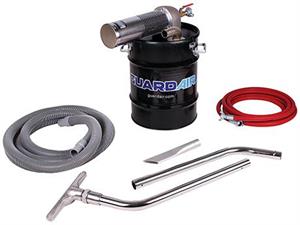

The Nortech Model N101DC Complete Vacuum System Includes The "D" Vacuum Head On Canister-Style Drum With Swivel Hose Connector & Internal Filter, 20' X 1-1/2" Standard Vacuum Hose, Wet/Dry Floor Tool With 4' Wand, Crevice Tool, & 20' Of 3/4" I.D. Air Supply Hose With Fittings.

Nortech 10-Gallon COMP VAC™ Kits Offers The Same High Level Of Performance As Our Larger Units But In A More Compact Package. Lightweight, Portable. Perfect For Applications Where Low Drum Capacity Is Sufficient. Ideal For Vacuuming Up Chips, Dust, Debris, Liquids Or Sludge. Powered By Compressed Air, Always Dependable & Trouble Free With No Motors Or Moving Parts To Wear Out. Generate Exceptional Vacuum Lift & Vacuum Flow While Operating Quietly & Efficiently. Very-High Lift/Medium Flow (D Venturi) & Medium Lift/Medium Flow (S Venturi) Versions Available. Kit Includes The Most Popular Vacuum Attachments & Accessories. Factory Installed Options Include: Steel Canister, Liquid Shutoff Assembly, & Extra Silent Exhaust.

Nortech Compressed Air-Powered Vacuums Offer Significant Advantages In Performance, Dependability, Safety, & Life-Cycle Cost Over Conventional Electric-Powered Vacuums.

No Electricity Required—Operate Strictly On Compressed Air
Dramatically More Powerful—Up To 213 Inches Of Water Lift
Always Dependable—No Moving Parts
Trouble Free—No Electric Motors To Burn Out
No Dangerous Power Cords—Safe In Almost Any Wet Environment
Extremely Versatile—Vacuum Chips, Dust, Powders, & Most Liquids
Quiet Operation—Inherently Low-Noise; Extra Silent Option Available
Filtration Options—Standard Or HEPA Filtration Available

Included In Nortech Model N101DC Complete Vacuum System Kit:

Canister Style Steel Drum
Single Venturi Vacuum Generating Head With Exhaust Silencer
Standard Cartridge Filter
Air Shutoff Valve With ¾” FNPT Inlet & Fittings
¾” x 20‘ Air Hose With Fittings
1½” x 20’ Standard-Duty Vinyl Vacuum Hose With Cuffs
12” Wide Metal Wet/Dry Floor Tool With 4’ Steel Wand
24” Metal Crevice Tool

Specifications Of Nortech Model N101DC Complete Vacuum System:

Drum Size: 10-Gallon
Vacuum Hose Fitting: 1-1/2"
Volume: 47 CFM @ 100 PSI
Venturi Motor Type: "D" (High Lift/Medium Flow)
Air Hose ID: 1/2"
Compressor Needed: 10 Horsepower
Vacuum Lift: 213 In H2O
Maximum Suction: 16.5" Hg (Mercury)
Maximum Vacuum Flow: 60 CFM
Dimensions: 23" L x 17.4 W x 23.9 H
Weight: 49 Lbs.
(SKU690773031587)

Part Number	Venturi (Type)	Air Usage (CFM @ 100 PSI)	Inlet Air Line	Minimum Compressor Required (Horsepower)	Vac Lift (in H2O)	Vac Flow (CFM @ 100 PSI)	Weight (Lbs)
N101DC	D	47	1/2"	10	213	60	49
N101SC	S	20	½"	5	105	61	49
N101MC	MC	20	⅜"	5	105	61	49

Select Here For Addiitional Information & Specifications On The Nortech Model N081DC Air Powered Vacuum:
