    PIRATE Model 0.5 Cu. Ft. 121-0510-E Portable Package "E" Blaster

    << Previous in Pirate: 0.5 Cu. Ft. Sandblast Packages Next in Pirate: 0.5 Cu. Ft. Sandblast Packages >>

    Price: $4,500.00
    PIRATE Model 0.5 Cu. Ft. 121-0510-E Portable Package "E" Blaster
    Item Number: 121-0510-E
    Manufacturer: Pirate
    Manufacturer Part No: 121-0510-E
    Free Standard Ground Shipping To Lower 48 States
    Email this page to a friend
    free shipping
    The PIRATE Model 0.5 Cu. Ft. (50 Lb. Capacity) 121-0510-E Portable Blaster With Remote Control System, AMV Grit Valve, 25' Blast Hose, Nozzle & OSHA Respiratory Package Holds 1/2 Cubic Foot Of Abrasive Providing Approximately 15 Minutes Of Blasting At 80 PSI With A No. 3 (3/16-Inch) Nozzle.  At Less Than 110 Lbs. This Unit Delivers High-Performance, Versatile Blast Cleaning System Removes Contamination, Corrosion, Mill Scale, And Coatings From Most Surfaces. Produces A Uniform Surface Texture, And Creates A Surface Profile To Increase Bonding For Coatings.

    Warranty Information

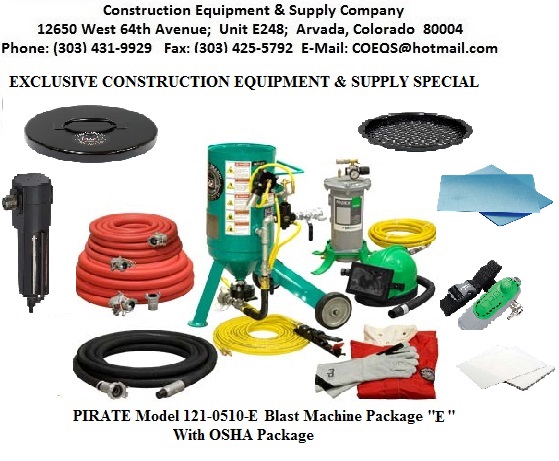

    PIRATE Model 0.5 Cu. Ft. (50 Lb. Capacity) 121-0510-E Portable Blaster With Remote Control System, AMV Grit Valve, Blast Hose & Nozzle Package "E" Includes:

    * 0.5 CU. FT. CAPACITY (50 LB CAPACITY) (14 LITERS)
    ---- 150 PSI VESSEL (10.3 BAR)
    ---- A.S.M.E. SECTION VIII DIVISION 1
    ---- CRN FOR ALL PROVINCES
    * PRESSURE RELEASE SYSTEM
    ---- AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
    ---- 1/2" INLET VALVE
    ---- 1/2" DIAPHRAGM OUTLET VALVE
    * 1/2" GALVANIZED PIPING FOR CORROSION RESISTANCE
    * HEAVY DUTY FULL PORT BALL VALVES

    * EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
    * FLEX PUSHER LINES WITH M-FLARE FITTINGS
    * AMV JR METERING VALVE
    * 1/2" BLAST HOSE ASSEMBLY W/COUPLINGS (25')
    * #4 TUNGSTEN CARBIDE, STRAIGHT BORE NOZZLE
    * BLAST SUIT, LIGHTWEIGHT, LARGE
    * LUXURY DOUBLE PALMED GLOVES (PAIR)
    * RPB® ASTRO™ RESPIRATOR
    * RPB® RADEX AIRLINE FILTER™
    * 25' BREATHING AIR SUPPLY HOSE, 3/8"
    * 1" AIR HOSE ASSEMBLY (50')
    * 3/4" AIR HOSE ASSEMBLY (50')
    * AIR HOSE COUPLING, 2 LUG, 1" MALE NPT
    * MOISTURE SEPARATOR
    * STEEL LID
    * STEEL MEDIA SCREEN
    * AIR CONDITIONER/HEATER COMBO TUBE
    * INNER LENS PACKAGE (10)
    * OUTER LENS PACKAGE (50)
    * MADE IN USA

    PIRATE Model 0.5 Cu. Ft. (50 Lb. Capacity)121-0510-E Portable Blaster With Remote Control System, AMV Grit Valve, Blast Hose & Nozzle  Features Include:

    • Full Flow Stainless Steel Teflon-Sealed Ball Valves With Brass Body
    • Semi-Elliptical Head For Larger Storage Of Abrasive
    • Urethane-Coated Pop-Up Valve With External Sleeve For Long Wear Life & Fast Pressurization
    • Large Insp ection Door For Easy Access To Inside
    • Heavy-Gauge Construction Pressure Vessel Fabricated For Rugged Field Service
    • Built To ASME Standards
    • Conical 35 Degree Bottom Ensures Total Use Of Abrasive & Uninterrupted Abrasive Flow
    • 45 Degree Abrasive Flow Into Air Stream
    • Heavy Duty Piping Assembled Tightly Against Tank Avoids Unnecessary Protrusions
    • Flexible Pusher Line Guarantees Air Flow Without Pressure Loss
    • Mounted On Two Heavy-Duty Rubber Wheels For Easy Portability
    • Weight: 220 Lbs. (100 Kgs.)

    Requirements for Operation: (These items are required but not all are included with this equipment)

    • Clean, dry, compressed air of sufficient volume to maintain desired pressure at the nozzle.
    • Minimum 12 cfm at 50 psi needed to close the pop-up valve and pressurize the blast machine.
    • OSHA-required remote control system that interrupts blasting if operator should lose control of the nozzle when blast machine is pressurized. (Included)
    • NIOSH-approved, type CE, supplied-air respirator.
    • Grade D breathing-air supply as defined by Compressed Gas Association Commodity Specification: G-7.1 (Refer to www.cganet.com).
    • Abrasive blast media specifically marketed for abrasive blasting and appropriate for your application.
    • Appropriate blast suit, work boots, hearing and eye protection.

    Advantages

    • One-man portable industrial-quality blast machines manufactured to ASME code.
    • Industrial-quality valves, piping and fittings designed to maximize air flow and minimize energy required to operate the system.
    • AMV abrasive metering valve maintains smooth, consistent, adjustable media flow.

    Description of Operation:

    The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting. The blast machine contains abrasive and meters it into the compressed air stream.

    Approvals and Certifications:

    Blast machine pressure vessel built to American Society of Mechanical Engineers (ASME) specifications for 125-psi working pressure. Vessel is hydrostatically tested and National Board-certified.

    Remote control system complies with OSHA regulation 1910.244 (b).


    Select Here For Additional Information & Parts Breakdown:

    For Your Own Health Silica Sand Is Not Recommended And For Legal Reasons Voids The Warranty, Though Sand Will Flow Easily Through This Machine. Breathing Dust From Silica Sand May Cause Silicosis, A Fatal Lung Disease. Breathing Dust During Blasting Operations May Also Cause Asbestosis And/Or Serious Other Diseases. A NIOSH Approved And Well-Maintained Air Supplied Abrasive Blasting Respirator Must Be Used By Anyone Blasting, Anyone Handling Or Using The Sand And Anyone In The Area Of The Dust. Harmful Dust Can Remain Suspended In The Air For Long Periods Of Time After Blasting Has Ceased, Causing Serious Injury Or Death.

    Due To Weight Restrictions This Unit Must Ship By Freightlines. This Is An Additional Charge To Sales Price Above.
    Please Call For Freight Quote Or Supply Preferred Freightlines & Account Number In "Messages" On Order Form.


    Price Above Does Not Include Packaging Or International Shipment Charges Which Require Crating.

    This item cannot be shipped by UPS. It will ship by common carrier directly from the factory in Indianapolis, Indiana. For a quote on shipping cost to your location, call (303) 431-9929) or email  coeqs@hotmail.com with the Zip Code to which you would like it shipped. Please specify if the delivery location is commercial or residential. Trucking companies charge more to deliver to residential locations. If other options such as “Liftgate” or “Call To Schedule Delivery” is required these may also be an additional charge.  Any additional charges will be invoiced to customer & processed against credit card.


    **Truck Freight Shipment Requirements

    Delivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order. Unloading and moving product(s) is your responsibility. Truck freight companies do NOT require their drivers to unload shipments. Inspect all packages upon delivery. Any damages or shortages MUST be noted on the bill of lading at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.
