    Home > 36. Hydraulic Equipment > Reimann & Georger Hydraulic Powered Equipment > HydraCutter > Reimann & Georger Mini Plunge Saw > RGC Model C50 1911013 Mini Plunge Saw With 13" Bar & 50-L (SL45-50) Chain

    RGC Model C50 1911013 Mini Plunge Saw With 13" Bar & 50-L (SL45-50) Chain

    << Previous in Reimann & Georger Mini Plunge Saw Next in Reimann & Georger Mini Plunge Saw >>

    Price: $2,780.00
    RGC Model C50 1911013 Mini Plunge Saw With 13" Bar & 50-L (SL45-50) Chain
    Item Number: C50/13/50-L (SL45)
    Manufacturer: RGC
    Manufacturer Part No: 1911013/13/50-L (SL45)
    Free Standard Ground Shipping To Lower 48 States
    Email this page to a friend
    free shipping

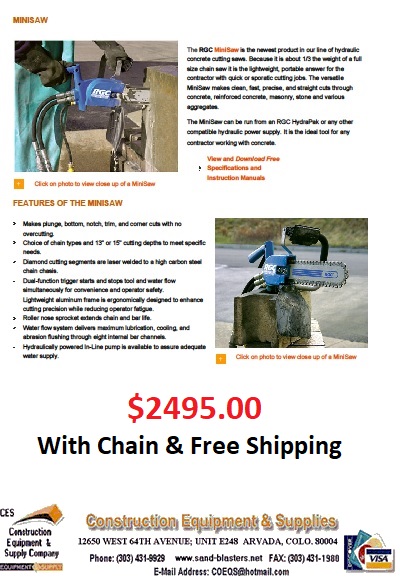

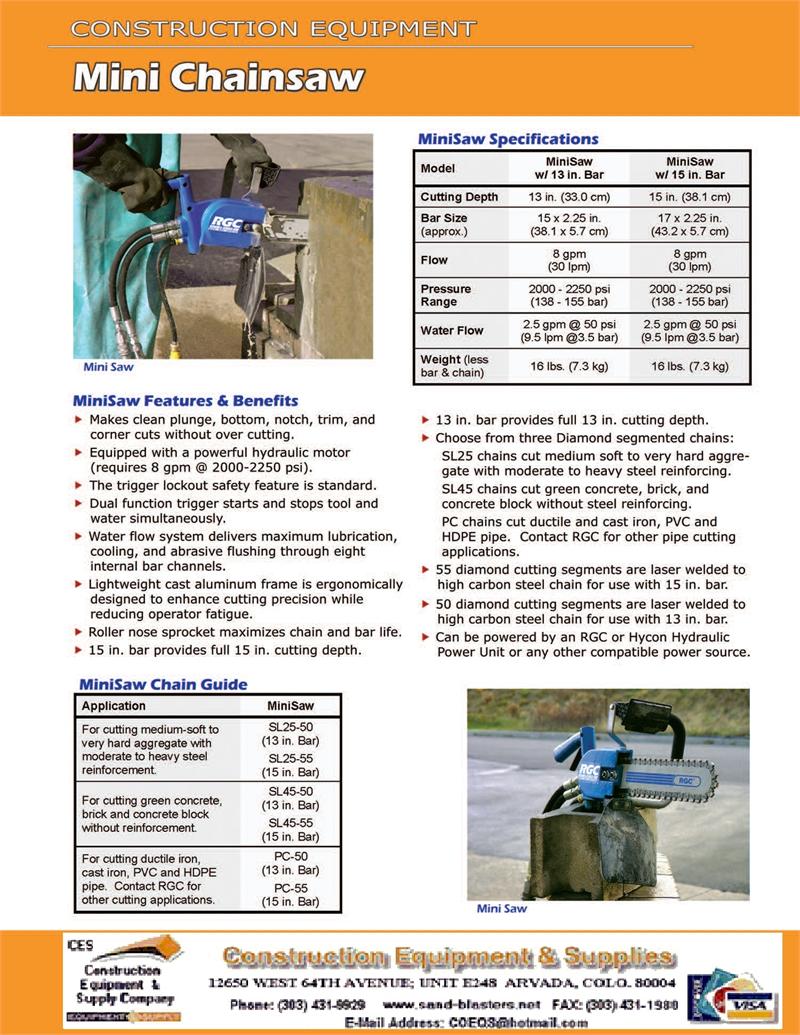

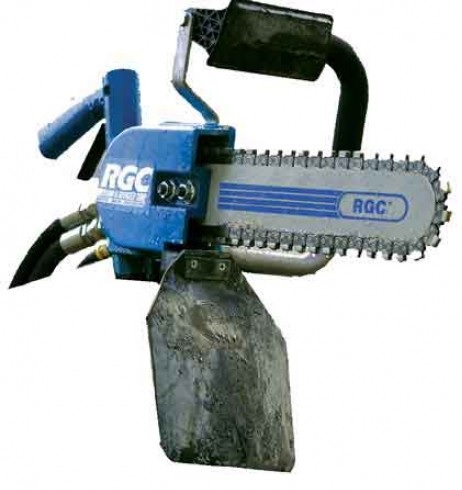

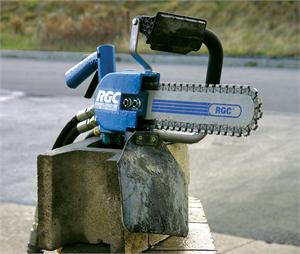

    The Reimann & Georger C50 MiniSaw is the newest product in our line of hydraulic concrete cutting saws. Because it is about 1/3 the weight of a full size chain saw it is the  lightweight,  portable answer for the contractor with quick or sporatic cutting jobs. The  versatile Reimann & Georger C50 MiniSaw makes clean, fast, precise, and straight cuts through concrete, reinforced concrete, masonry, stone and various aggregates.

    The RGC C50 MiniSaw can be run from an RGC HydraPak or any other compatible hydraulic power supply. It is  the ideal tool for any contractor working with concrete.

    Features Of the Reimann & Georger C50 MiniSaw:

              Makes Plunge, Bottom, Notch, Trim, And Corner Cuts With No Overcutting
              Choice Of 2 Chain Types And 13" Or 15" Cutting Depths To Meet Specific Needs
              Diamond Cutting Segments Are Laser Welded To A High Carbon Steel Chain Chasis
              Dual-function trigger starts and stops tool and water flow simultaneously for convenience and operator safety
              Lightweight  aluminum frame is ergonomically designed to enhance cutting precision while reducing operator fatigue
              Roller nose sprocket extends chain and bar life
              Water flow system delivers maximum lubrication, cooling, and abrasion flushing through eight internal bar channels
              Hydraulically powered In-Line pump is available to assure adequate water supply
              Only 16 Lbs. For Less Operator Fatigue
              Equipped With A Powerful Hydraulic Motor

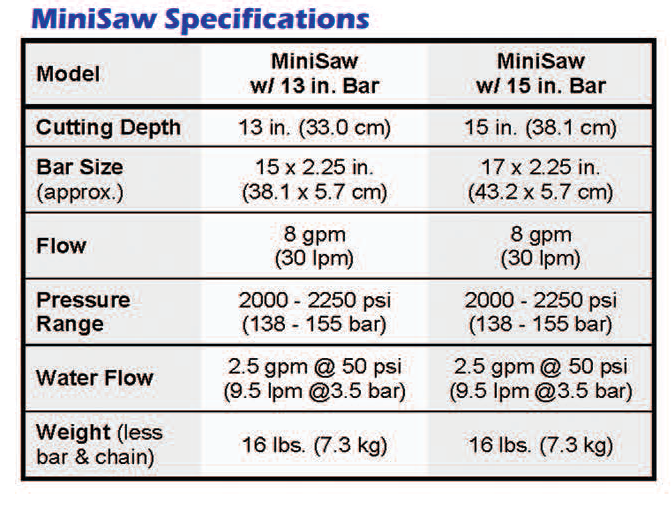

              Requires 8 GPM @ 2000-2250 PSI Hydraulics & 2.5 GPM @ 50 PSI Water For Cooling Of Chain
              Trigger Lock Out Safety System Standard

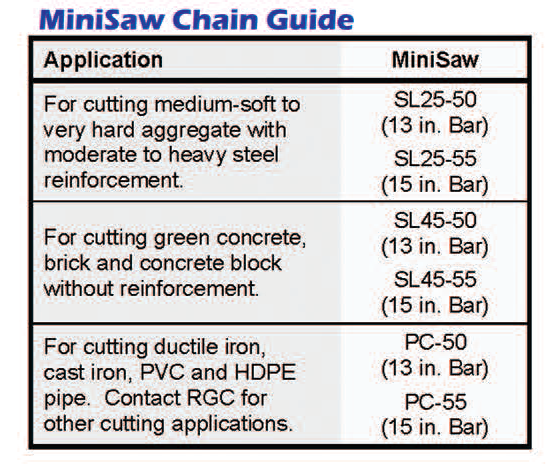

    Choice Of Two Diamond Segmented Chains For A Wide Assortment Of Materials.

    • The 50-S (SL25-50) Chain For Cutting Hard Or Very Hard Aggregate With Heavy Steel Reinforcing To Cutting Medium-Soft To Medium-Hard Aggregate With Moderate Steel Reinforcing.
    • The 50-L (SL45-50) Chain For Cutting Green Concrete, Brick And Concrete Block With Steel Reinforcing.


    Free Standard Ground Shipping To Lower 48 States

    **Shipment Requirements

    Delivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order. Unloading and moving product(s) is your responsibility. Truck freight companies do NOT require their drivers to unload shipments. Inspect all packages upon delivery. Any damages or shortages MUST be noted on the bill of lading at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.
