Spin-Blast Pipe Cleaning Tool (36" To 60" ID Pipe)

<< Previous in 14. Pipe Blasting Next in 14. Pipe Blasting >>

Manufacturer: Clemco

Product Options

Size Below::
The Spin-Blast Tool Is Designed To Blast Clean Large Diameter Pipe With The Same Direct Force As Standard Blast Nozzles. Spin-Blast Mounts Two Tunsten Carbide Venturi Blast Nozzles Which Provide Mechanism To Rotate A Spinning Head While Propelling Abrasive To The Surface. Cleans Pipe At Rates Unobtainable By Any Other Means Due To Its Hard Hitting Force.
This New Spin-Blast Unit Uses The Proven Smaller Spin-Blast Design But A Larger Nozzle Head Has Been Installed To Accomodate Larger Nozzles And Media Sizes.  For Customers That Own The Standard Spin-Blast Machine The Nozzle Head Can Be Removed Easily And Replaced With The Larger Head In The Field With Only An Adjustable Wrench.   The Larger Nozzle Head  Is Part Number 10546 And May Be Selected From Pull Down Menu Above.

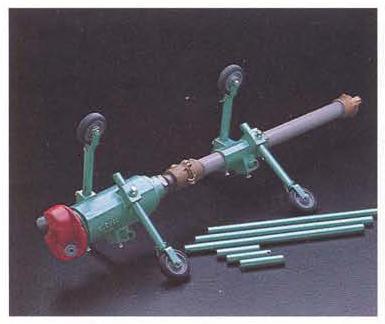

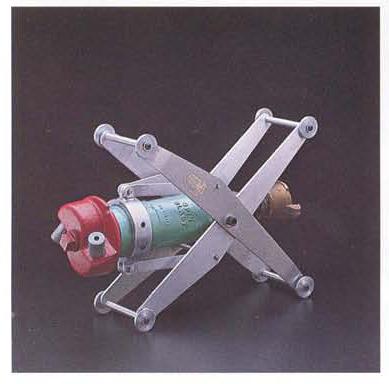

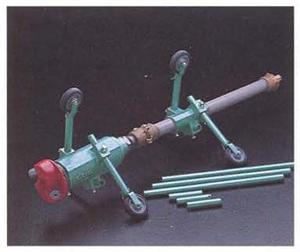

Centering Carriages Help Ensure Uniform Coverage. A New Quickly Adjustable Centering Carriage Has Been Developed To Improve Spin-Blast Travel Through Piping Of 36" To 60" Inside Diameter.

Five Nozzle Sizes Are Available To Obtain The Best Possible Cleaning Rate. Nozzle Selection Is Based On Severity Of Surface Condition And Compressed Air Supply. Standard Unit Is Furnished With 3/8" Orifice 1-3/4" Long Nozzles. Refer To Chart Under "View More Images" Under Picture Above For Recommendations That Apply To Specific Applications.

Select "View More Images" Under Picture Above For Unit With Carriage

Recommended 16 To 40 Mesh Abrasive Depending On Conditions
