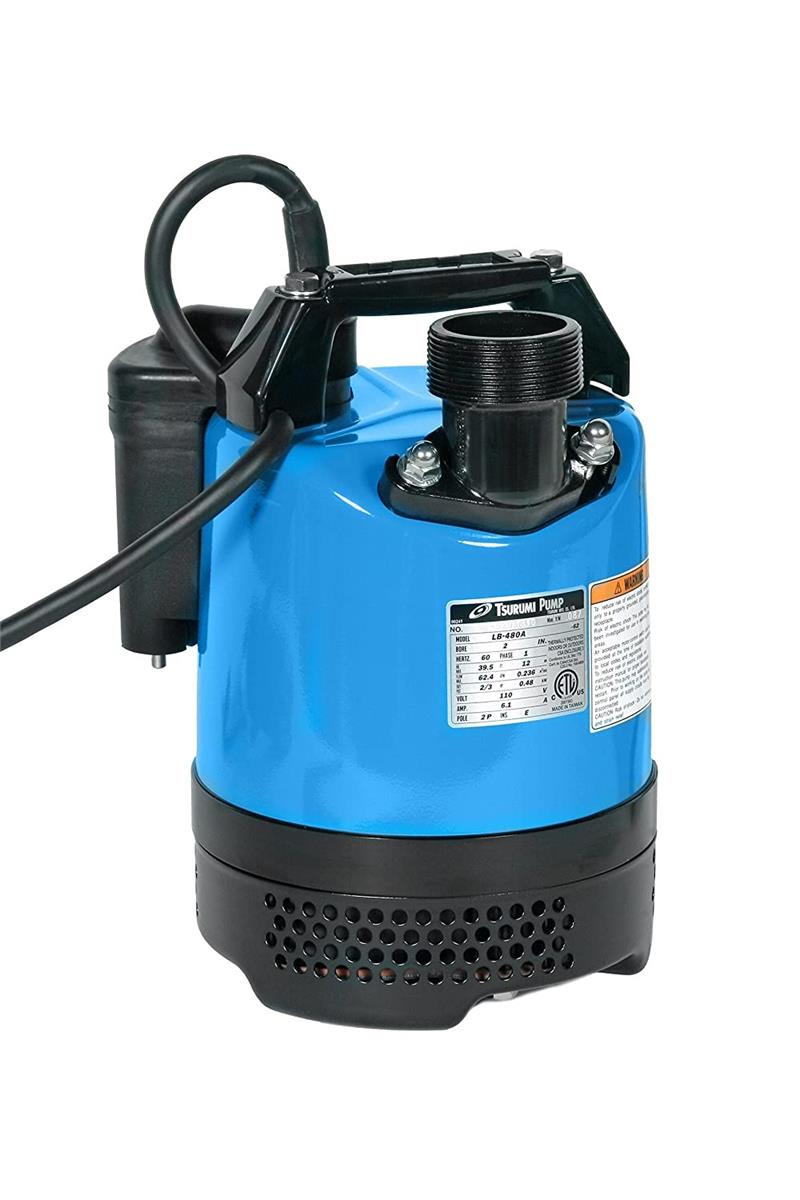

TSURUMI Model LB-480A 2" Electric Submersible Pump With Built-On Float Switch

<< Previous in Submersible

Next in Submersible >>

Price: $434.00

Item Number: LB-480A

Manufacturer: Tsurumi

Manufacturer Part No: LB-480A

Free Standard Ground Shipping To Lower 48 States

Quantity:

Email this page to a friend

The TSURUMI Model LB-480A 2" Electric Submersible Pump With Built-On Float Switch Is Compact And Powerful. No Control Panel Or Float Switches Required. Handles Like Non-Automatic Pump - No Special Installation Procedures. Requires Very Small Space To Operate - Only 8-3/4" Diameter. Provides All The Wear Resistant Features Of Standard LB-480. Our Advanced EL-1 Relay Unit Mounted On The Side Of The Pump, Eliminates The Need For Float Switches. These Sensitive Electrodes Detect Water, Turning The Pump On & Off Automatically.

TSURUMI Model LB-480A With Built-On Float Switch Features Include:

Maximum Capacity: 62.4 Gallons Per Minute
Maximum Head: 39.5 Feet
Solids Diameter: 1/4 Inch
Includes Built-In Electric Float For Automatic Operation
Sensitive Electrodes Detect Water To Start Pump
Impeller Type: Semi-Vortex
Impeller Material: Urethane Rubber
Casing Material: Ethylene Propylene Rubber
Wear Plate Material: Ethylene Propylene Rubber
Discharge Connection: 2" MNPT Coupling
Motor Output: 2/3 Horsepower
Phase: Single Phase
Voltage: 110 Volt
Amperage -Rated Current: 6.1
Amperage - Starting Current: 12.5
Standard Cable Length: 32 Feet
Maximum Cable Length: 92 Feet
Minimum Generator Capacity: 1300 Watts
Maximum Diameter: 8-3/4 Inches (22.23 cm)
Maximum Height: 11-15/16 Inches (28.58 cm)
Continuous Running Water Level: 4 3/4 Inches
Oil Lifter Provides Lubrication Of The Seal Faces
Built-On Float Switch For Automatic Shut-Off
County Of Origin: Japan
Factory Limited Warranty: 2 Years
Pump Weight: 22 Lbs. (13.61 Kilograms
Shipping Weight: 29 Lbs.

Additional Information
Select Here For Additional Information: http://www.powerequipmentdirect.com/manuals/Tsurumi%20BFW_Rental_MAR2012_submersible.pdf

http://www.powerequipmentdirect.com/manuals/Tsurumi%20LB_B-10003-8.pdf

Performance Range

Model	Discharge Size (in.)	Motor Output (HP)	Voltage (V)	Cable Length (ft.)	Diameter (in.)	Height (in.)	Weight (lbs.)
LB-1500	3	2	110V or 220V	50	7-3/8	23-5/16	72
LB-480	2	2/3	110V	32	7-3/8	11-1/4	28
LB-480A	2	2/3	110V	32	8-3/4	11-1/4	30
LB-800	2	1	115V or 230V	50	7-3/8	13-7/16	35
LB-800A	2	1	115 or 230	50	8-3/4	23-5/16	38
LBT-1500	2 or 3	2	230 or 460 or 575V	50	7-3/8	23-5/16	85
LBT-800	2	1	230 or 460 or 575V	50	7-3/8	13-7/16	35
