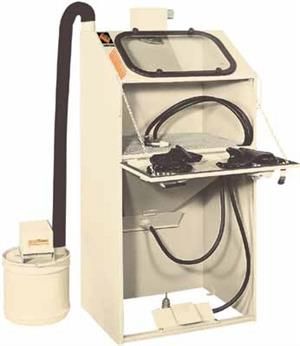

EMPIRE 115013 Model EF-2436B Econo-Finish Suction Blast Cabinet

$3,900.00
Price incl. Sales tax (4.3%) $160.79
In stock
1
Allowed purchase quantity: from 1 to 999 items
Product Details
Brand: Empire
Weight: 250.00 lbs
The EMPIRE Model EF-2436B Econo-Finish Suction Blast Cabinet P rovides An Great Opportunity For First-Time Blast-Finishers To Appreciate The Capabilities Of Abrasive Blasting. The Basic Design Of This Cabinet Is The Same As Other Econo-Finish Models, But To Further Reduce Costs, A Single Drop-Down Door Is Used.

Empire’s Inexpensive Econo-Finish Blast Cabinets Feature A Unique Front-Access Door To Simplify Loading Of Parts, S ave Floor Space & Speed Finishing Operations. Designed For Light-To-Medium Cleaning & Surface Finishing J obs, These Economical Cabinets Combine S turdy, 14-Gauge Steel Construction With The Features Y ou Need To Perform A Wide Range Of Finishing Tasks. All Econo-Finish Cabinets Are Equipped With A Foot-Treadle B last Control For Ease Of Operation, An External Media Regulation D evice, Quick-Change Safety Glass & A D ust-Collection System. In Addition, You Can Select From Upgraded Features S uch As Production-Quality Blast Guns, A Pressure R egulator With Gauge, Long-Life Blast Nozzles & A High Capacity D ust Collector That Extends Operating Intervals B etween Clean-Outs. Our DC-16 & DC-30 Dust C ollectors Feature A Cartridge Filter With 16-Gallon & 30-Gallon Dust Capacities & Built-In Silencers.

Empire Econo-Finish Suction Cabinets Are Available In Two B asic Configurations: Models With Wwo-Piece, S wing-Down & Flip-Up Doors For Maximum I nterior Acess & An Even More E conomical Unit With A Swing-Down Door Only (Shown Above) . Models With Two-Piece Doors Can Be Specified W ith A Standard Upgrade Package Designed To E xtend Usage & Maximize Production.

EMPIRE Model EF-2436B Econo-Finish Suction Blast Cabinet Features & SpecificationsP

  • Overall Dimensions: Height: 65" Width: 36" Depth: 24"
  • Working Dimensions: Height: 23" Width: 36" Depth: 24"
  • Front Drop-Opening Door: Height: 14" x Width: 35"
  • Top Opening Door: Height: 11" x Width: 35"
  • Total Double Door Opening: Height: 23" x Width: 35"
  • Window: 22" x 14" Safety Glass With Quick-Chage Frame
  • Construction: 14 Gauge Steel
  • Gun Assembly: Foot Operated: 15 CFM @ 90-100 PSI (4 Horsepower)
  • Nozzle: MH-4 (1/4" Ceramic Nozzle, 3/32" Air Jet) (Upgrade MH-2A (1/4" Ceramic Nozzle, 1/8" Air Jet))
  • Pneumatic Foot-Treadle Control
  • SAR-3 Media Regulator
  • Pipe String: 3/8" 200 Pound Floor Capacity
  • Rubber Cloth-Lined Gloves
  • 90-Watt Flood Light
  • Electrical: 115 Volt, Single Phase
  • Dust Collector: DC-16 16 Gallon Cartridge 133 CFM Duct Collector (1 HP; 115 Volt, 50-60 Hz)
  • Dust Collector Filter Area: 22 Square Foot
  • Dust Collector dBa: 52
  • Dust Collector Dimensions: Diameter: 16" x Height: 22"
  • Total Weight: 235 Lbs.
  • Part #115013


Partial Listing Of Options Available:
* OSHA Safety Door Switch
* Safety Matting
* Special Electricals
* Pressure Regulator
* Air Gauge
* Di-Carb & Boron Nozzles




FOR ADDITIONAL PACKAGES AND OPTIONS
PLEASE CALL 303-431-9929 OR GO TO:
sa ndblasters.us




Select Here For Additional Information On The Empire EF-2436B Econo-Blast Cabinet: http://products.empire-airblast.com/Asset/Econo-Finish-Cabinets-Brochure.pdf...

Select Here For Parts Breakdown On The Empire EF-2436B Econo-Blast Cabinet: http://products.empire-airblast.com/Asset/Econo-Fi...


**Truck Freight Shipment Requirements

Delivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order. Unloading and moving product(s) is your responsibility. Truck freight companies do NOT require their drivers to unload shipments. Inspect all packages upon delivery. Any damages or shortages MUST be noted on the bill of lading at the time of delivery . Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.

Due To Weight Restrictions This Unit Must Ship By Common Carrier. This Is An Additional Charge To Sales Price Above.
Please Call For Freight Quote Or Supply Preferred Carrier & Account Number In "Messages" On Order Form
.

This item cannot be shipped by UPS. It will ship by common carrier directly from the factory in Pennsylvania. For a quote on shipping cost to your location, call (303) 431-9929) or email coeqs@hotmail.com with the Zip Code to which you would like it shipped. Please specify if the delivery location is commercial or residential. Trucking companies charge more to deliver to residential locations. If other options such as “Liftgate” or “Call To Schedule Delivery” is required these may also be an additional charge.

Price Above Does Not Include Packaging For Domestic & International Shipments Exporting Requires Crating At An Additional Charge

NEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENT
