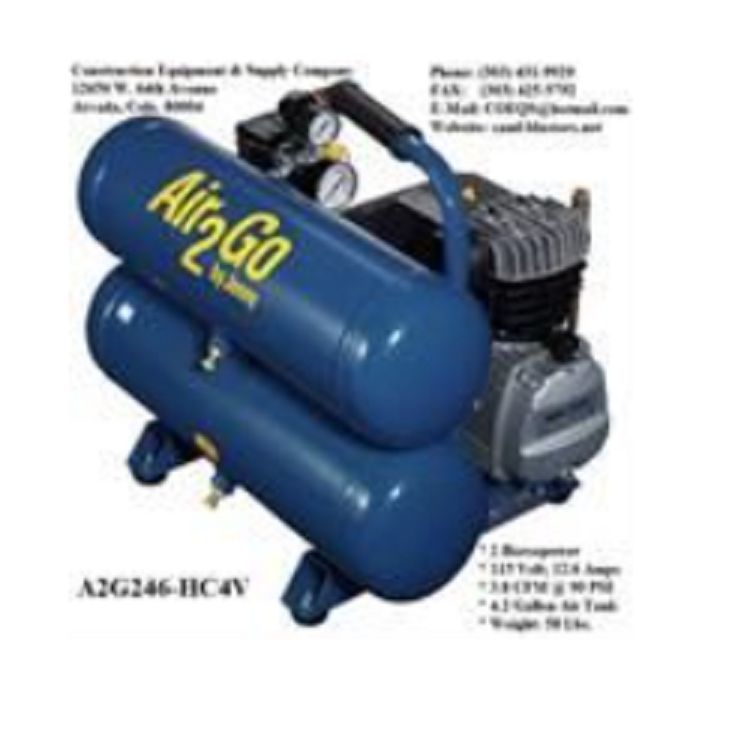

Jenny Model A2G246-HC4V 2-HP Electric Hand-Carry Portable Air Compressors
-
JENNY Model A2G246-HC4V 2-HP Electric Hand-Carry Portable Air Compressors
Perfect For Small Construction Projects Using Nailers, Staplers Or Caulking Machines. Ideal For Air Ratchets, Nibblers, And Small Air Drills. All Units On This Page Deliver A Minimum 4.0 (CFM) Cubic Feet Per Minute @ 90 PSI (Pressure Per Square Inch) or 3.4 CFM @ 125 PSI.
Standard Features:
* Lightweight, Compact And Extremely Portable
* Single Stage, Direct Coupled, Oil Lubricated Pump
* Cast Iron Cylinder For Extended Pump Life
* Aluminum Head For Better Heat Dissipation
* Each Unit Is Filled With Jenny Synthetic Blue Compressor Pump Oil
* Canister Inlet Filter With Replaceable Filter Elements
* Forced Ventilation Cooling System
* Powder Coated Heavy Duty Steel Tank And Frame Assembly
* Protectively Mounted Fittings
* Anti-Vibration Feet
* Air Line Regulator And Two Gauges For Line And Tank Pressure
* Pressure Relief Safety Valve
* Manual Tank Drain(s)
* Special Unloading Valves To Assist In Motor/Engine Starting
* Start/Stop Pressure Switch Control Set At 105-125 PSI
* On/Off Switch
* Thermal Overload Motor Protection With Manual Reset
* 6 Foot Power Cord
Dimensions & Weight:
A2G246-HC4V: 34" L x 20" W x 17" H Weight: 64 Lbs.
A2G246-HC5H: 22" L x 19" W x 15" H Weight: 62 Lbs.
AM780-HC2: 16" L x 13" W x 15" H Weight: 49 Lbs.
AM780-HC4V: 18" L x 15" W x 16" H Weight: 60 Lbs.
AM780-HC4H: 23" L x 12" W x 24" H Weight: 58 Lbs.
AM780-HC6V: 18" L x 18" W x 24" H Weight: 64 Lbs.
| |
|
|
|
CFM@
|
CFM@
|
| A2G246-HC4V |
|
4.8 Vertical |
|
4.0 |
3.4 |
| A2G246-HC5H |
5.3 |
||||
| AM780-HC2 |
1.5 |
4.1 |
3.6 |
||
| AM780-HC4V |
4 |
||||
| AM780-HC4H |
|||||
| AM780-HC6V |
6 |
-
FOR ADDITIONAL PACKAGES AND OPTIONS PLEASE CALL 303-431-9929 OR GO TO: sandblasters.us
Additional Information
Select Here For Additional Information!
l Select Here For Parts Breakdown On Jenny Air Compressors Listed On This Page :
Any damages or shortages MUST be noted on the carrier receipt at the time of delivery . Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading or delivery receipt for your records.
