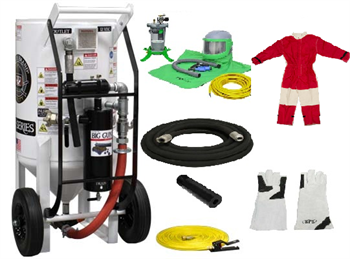

PIRATE Big Gun Model 6.5 Cu. Ft. Portable Blast Package "C" With ComboValve Pneumatic "Pressure Release" Operation
- 6.5 Cu. Ft. (650 Lb. Capacity, 185 Liters) 150 PSI (10.3 Bar) Vessel With 1-1/2" Pipe String
Equipped With The Following:
- A.S.M.E. Section VIII Division 1 Approved And CRN For All Provinces
- Mounted On Two 10" Rubber Tires For Easy Mobility
- Combination Valve Is A Two In One Design That Will Stop The Air Blasting & Relieves The Pressure From The Vessel When The Control handle Is Released.
- Manual Plunger Valve (MPV) Is A Simple Reliable Design That Provides A Wide Range Of Adjustment Of Abrasive Flow To The Nozzle
- Relieving Control handle Reduces Air Consumption & Reduces Stopping Times When Control Handle Is Released
- Heavy Duty 1-1/2" Moisture Separator
- 55' Remote Control Deadman Hose
- Remote Control Handle
- Pressure Release System Automatically Blows Down The Vessel When Control Handle Is Released
- Low Maintenance Design
- Simple Touble Shooting For In Field Repairs
- Heavy Duty Full Port Ball Valves
- Extended Life Schedule 80 Heavy Duty Nipple Which Withstands Abrasive Wear For Longer Life
- Bolt Clamps On Pusher Line Make Field Repairs Easier
- Loading Skid/Valve Guard
- #7 (7/16") Big Gun Tungsten Carbide Polyurethane Body & Brass Threaded Nozzle With Wide Entry (888-5001-307PB)
- 1-1/2" ID x 50' Big Gun Full Flow Blast Hose With Aluminum Coupling & Nozzle Holder Installed (10-112BLK-050-3XAL)
- Safety Cable For Hose Size 1-1/2" TO 3" To Fit Hose To Equipment
- UPGRADE: NOVA3 Respirator Package Includes Helmet, Breathing Hose And Air Purifier
- Lightweight Blast Suit
- Luxury Double Palmed Gloves (Pair)
- Weight: 600 Lbs.
- MADE IN USA
Pressure Release & Pressure Hold
PLEASE CALL 303-431-9929 OR GO TO: sa ndblasters.us
Select Here For Information Sales Brochure
For Pirate ComboValve Pneumatic Blast Packages:
Select Here For Parts/Service Manual For Pirate ComboValve Pneumatic Blast Packages:
Select Here For Information On How The Pirate ComboValve Pneumatic Blast Machine Works
:
Freight Charges Are Additional and Will Not Appear At Checkout.
Call For Freight Quote.
If Your Company Has A Freightline Preference and An Account Please List
It Under Notes At Check Out.
*Construction Equipment & Supply Co. Is Not Affiliated With Nor Endorsed By The Manufacturers Mentioned In
This Description With The Exception Of RPB Respiratory & Pirate Brand
For Your Own Health Silica Sand Is Not Recommended And For Legal Reasons Voids The Warranty, Though Sand Will Flow Easily Through This Machine. Breathing Dust From Silica Sand May Cause Silicosis, A Fatal Lung Disease. Breathing Dust During Blasting Operations May Also Cause Asbestosis And/Or Serious Other Diseases. A NIOSH Approved And Well-Maintained Air Supplied Abrasive Blasting Respirator Must Be Used By Anyone Blasting, Anyone Handling Or Using The Sand And Anyone In The Area Of The Dust. Harmful Dust Can Remain Suspended In The Air For Long Periods Of Time After Blasting Has Ceased, Causing Serious Injury Or Death.
**Truck Freight Shipment Requirements
Delivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order.
Unloading and moving product(s) is your responsibility.
Truck freight companies do NOT require their drivers to unload shipments.
Inspect all packages upon delivery.
Any damages or shortages MUST be noted on the bill of lading at the time of delivery.
Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.
This item cannot be shipped by UPS. It will ship by common carrier directly from the factory in Indianapolis, Indiana. For a quote on shipping cost to your location, call (303) 431-9929) or email coeqs@hotmail.com
with the Zip Code to which you would like it shipped. Please specify if the delivery location is commercial or residential. Trucking companies charge more to deliver to residential locations. If other options such as “Liftgate” or “Call To Schedule Delivery” is required these may also be an additional charge.
Price Above Does Not Include Packaging For Domestic & International Shipments Exporting Requires Crating At An Additional Charge
