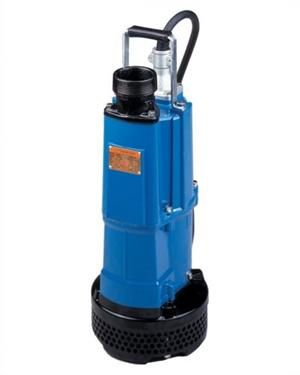

TSURUMI Model NK2-15 110V 3" Electric Submersible Pump

TSURUMI Model NK2-15 3" Discharge Electric Submersible Pump Is A Heavy Duty, High Head Pump Capable Of Handling Abrasive Materials With Minimal Wear That Can Be Ordered In 110 Volt As Well As 220 Volt Single Phase Power. Wear Resistant Parts Include Semi-Vortex Design And Ethylene Propylene Rubber Volute And Wear Plate For Maximum Durability, Oil Lifter Extends Shaft Seal Life Up To 10 Times Longer, V-Ring System Protects The Shaft Seal From Abrasives, Internal Capacitor Start, And Terminal Board For Voltage Reconnect (NK2-15 Only).TSURUMI Model NK2-15 Features Include:Maximum Capacity: 111 Gallons Per MinuteMaximum Head: 69 FeetMax. Dia. Solids: 5/16"Impeller Type: Semi-VortexImpeller Material: Ductile Iron CastingCasing Material: Ethylene Propylene RubberWear Plate Material: Integral Part Of CasingShaft Seal: Silicone CarbideDischarge Connection: 3" MNPT CouplingMotor Output: 2 HorsepowerRPM: 3440Insulation Class: BPhase: Single PhaseVoltage: 110 Volt Or 220 VoltAmperage -Rated Current: 23 (110V) Or 11.5 (220V)Amperage - Starting Current: 136.0 (110V) Or 68 (220V)Standard Cable Length: 32 FeetCord Type: 3-Conductor Resists Water and OilCord Size: 12/3Maximum Cable Length:46 Feet (110V) Or185 Feet (220V)Minimum Generator Capacity:7200 WattsMaximum Diameter: 9-7/16 Inches (240 mm)Maximum Height: 24-1/2 Inches (622 mm)Continuous Running Water Level: 3-1/4 InchesLubrication: SAE10W/20W Or Turbine Oil (ISO VG32)9.1 OuncesGPM @ 1 Ft. of Head: 111GPM of Water @ 10 Ft. of Head: 108GPM of Water @ 20 Ft. of Head: 96GPM of Water @ 30 Ft. of Head: 84GPM of Water @ 40 Ft. of Head: 68GPM of Water @ 45 Ft. of Head: 60Agency Compliance: Etl/CetlApplication: Nonflammable LiquidsMax. Liquid Temp.: 104 Degrees FHandle: Top CarryingDuty: ContinuousWarranty: Limited 2 YearsPump Weight: 63.5 Lbs (29 Kilograms) Available Options: TS-303 Float Switch For Automatic Operation (220V Only) Agitator Kit To Suspend Solids& Prevent Clogging 2-Inch NPT Coupling Available Performance Range

Model	Discharge Size (Inches)	Motor Output (HP)	Voltage (Volt)	Cable Length (Feet)	Diameter (Inches)	Height (Inches)	Weight (Lbs.)
NK2-15	3	2	110	32	9-7/16	24-1/2	63.5
NK2-22	3	3	220	32	9-7/16	24-1/2	64
NK2-22L	3	3	220	32	9-1/4	26-1/2	88

Free Standard Ground Shipping To Lower 48 StatesSelect Here For Tsurumi Pump Catalogue:http://www.powerequipmentdirect.com/manuals/Tsurumi%20BFW_Rental_MAR2012_submersible.pdf Select Here For Tsurumi Model NK2-15 3" Electric Submersible Pump: http://www.tsurumipumpstore.com/assets/1/6/PartsList_NK2-15.pdf **Truck Freight Shipment RequirementsDelivery location must be accessible to the delivery truck. Liftgate or Pallet Jack must be arranged at time of order. Unloading and moving product(s) is your responsibility. Truck freight companies do NOT require their drivers to unload shipments. Inspect all packages upon delivery. Any damages or shortages MUST be noted on the bill of lading at the time of delivery. Notify the carrier and Construction Equipment & Supply Co. immediately and we will assist you as fully as we can. Please retain a signed copy of the bill of lading for your records.

Part #	Description:	Price:
TS001-500-11	Power Cord 32 Foot(110V-60Hz)	$ 390.60
TS020-B19-18	Pump Casing	$ 70.50
TS023-432-19	Strainer Stand	$ 50.30
TS025-243-17	Mechanical Seal	$ 302.80
TS032-355-15	Hose Coupling NPT 3"	$ 92.60
TS052-103-18	Bearing	$ 14.30
TS052-108-13	Bearing	$ 23.50
TS071-297-19	Shaft Sleeve	$ 24.20
TS076-141-12	Capacitor	$ 169.00
TS121-001-09	Packing	$ 6.30
TS122-443-13	V-Ring	$ 13.20
TS173-502-19	Packing O-Ring Set	$ 80.40
TSK15-SK	Sand Kit for NK2-15	$ 274.00
TS-303	Float Switch for 220V up to 3hp (Max. 15FLA)	$ 103.00
3PVC50 3STRAINER	3" x 50' Discharge Hose NPT3" Suction Strainer	$ 122.00$ 20.00
TS021-F73-17	Impeller NK2-15	$ 92.60
